JJ ELECTRONIC EL34 E34L VALVOLE VACUUM TUBE

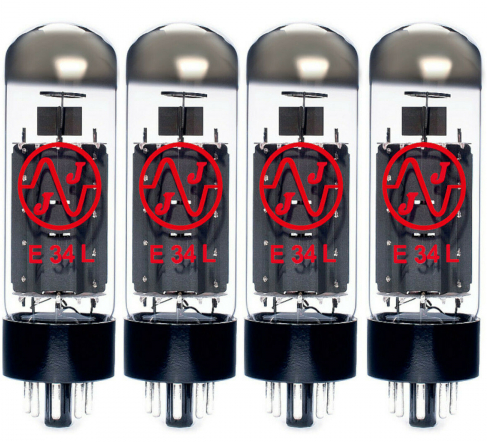

JJ ELECTRONIC EL34 E34L VALVOLE VACUUM TUBE Selezionate kit 4 valvole made Slovacchia

Marchio: Jj Eletronic

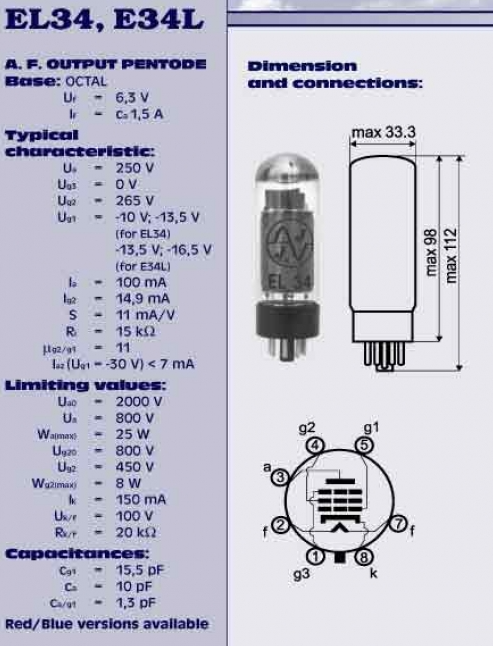

Valvole EL34 pezzi 4 JJ Electronic made in Slovacchia VALVOLE ultra SELEZIONATE EL34, E34L A. F. OUTPUT PENTODE Base: OCTAL Uf= 6,3 V If=ca1,5 A Typical characteristic: Ua= 250 V Ug3=0 V Ug2= 265 V Ug1= -10 V; -13,5 V (for EL34) -13,5 V; -16,5 V (for E34L) Ia= 100 mA Ig2= 14,9 mA S = 11 mA/V Ri=15 kΩ μg2/g1=11 Iaz(Ug1= -30 V) < 7 mA Limiting values: Ua0= 2000 V Ua= 800 V Wa(max)= 25 W Ug20= 800 V Ug2= 450 V Wg2(max)=8 W Ik= 150 mA Uk/f= 100 V Rk/f= 20 kΩ

Previous Next

Caratteristiche del Prodotto:

• Capacitances: cg1= 15,5 pF
• Capacitances: ca= 10 pF
• Capacitances: ca/g1= 1,3 pF
